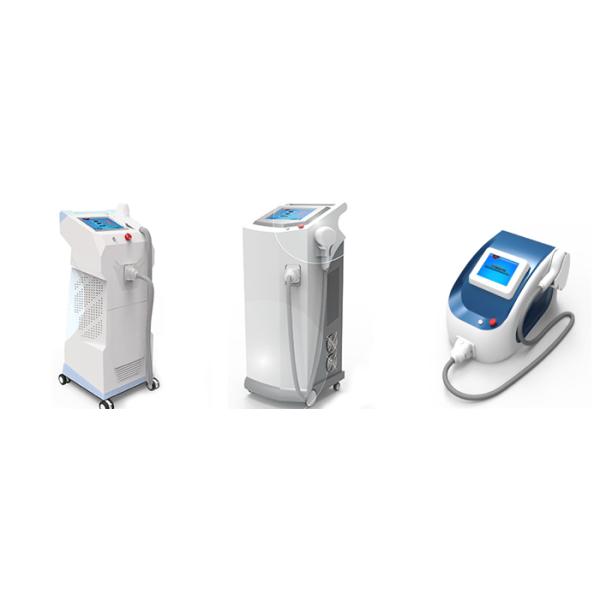

Diode laser for hair removal beauty machine Treatment principle:
diode laser hair removal use 808-nm diode laser technology, the gold standard in laser hair removal, energy penetrates deep into the dermis where the hair follicle is located, delivering high average power. Diode laser with TEC assisted by sapphire contact cooling in hand piece provides safe and effective reduction of pigmented hair for all skin types.
| Laser type | Semiconductor laser |
| wavelength | 808 nm |
| Output Mode | pulse output |
| Control Method | Touch control |
| Screen Size | 10.4 Inch |
| Energy density | 20~70J/cm2 (Deviation≤±2%) |
| Pulse width range | 1-400ms |
| Spot size | 12*20mm |
| Frequency | 1-10HZ |
| Light spot surface temperature | 0-30°C |
| Cooling System | Semiconductor+built-in water+Air Cooling triple cooling systems |
| Dimension | 500×425×1120mm |
| Net weight | 60kg |
| Fuse specification | Ø5×2510A |
| Input Power | 1800W |
| Power | AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ |
Handlepiece:
*Germany original imported medical use pipe more durable , more professional .
*Spot size=12mm*20mm=2.4cm² , total energy output 24J~168J , average energy 10~70J/cm²
*Shot time warranty (max energy,max frenquency): 20 millions
10 germany "dilars" diode laser bar inside . Total output 600w , 60w for each laser bar .
Water and wind cooling system:
Medical use 60 meter level high pressure magnetic drive pump , peltier elements 40*40mm double deck cooler , 4 big power fan with copper condensor , make sure the handle and the machine 's best cooling .
Operation system:
Easy and humanized operation system . Loading , choose men or women , choose the skin type (combine the international 6 types) , choose the treatment area then start working . All suggest parameter settled well . Set your own parameter after a few times operation .
Safety system:
Automatic detection : Water flow voclocity , flow capacity ,working temperature . Error display when meet unnormal situation . Machine works stable and safe .
Treatment scope:
Remove the unwanted hair on all parts of the body, such as hairline, lip hair, whiskers, armpit hair, body hair, bikini hair or any other unwanted hair
Hair removal works:
1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.
2. Clear treatment area.
3. Turn on machine,
choose man /woman and skin type ,clinic the treatment area ,adjust the parameter, set it to ‘standby’ .
4. Put cooling gel on treatment area about 2mm.
5. Wear protect goggles for patient and operator.
6. Shot the treatment area, let the crystal tip to touch cooling gel, You are permitted to have
1/3 overlapping on treatment area.
7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area until heat disappear.
FAQ:
What is laser therapy and how does it work? Lasers designed for permanent hair reduction emit wavelengths of light that are absorbed by the pigment in the hair (melanin). If the surrounding skin is lighter than the colour of the hair, the energy of the laser is concentrated in the hair shaft (selective phytothermalysis), effectively destroying it without affecting the skin. Once the hair follicle is destroyed the hair growth activity is permanently disabled.
Who suitable for Laser Hair Removal?
Both men and women seek laser hair removal to remove unwanted hair. Laser hair removal is commonly done on the underarm, pubic area, legs, abdomen, lip, chin, back, buttocks, thighs, face, neck, chest, arms, and toes.
Laser technology works by targeting dark pigment. Therefore, it works best on pale skin and dark coarse hair. The lighter the skin and the darker and more coarse the hair, the better the results.
What is the difference between Laser and IPL?
IPL stands for ‘intense pulsed light’ and has some branded variations such as SIPL, VPL, SPL which are all essentially the same technology. IPL machines are not lasers. IPL devices are generally cheaper than laser devices, which is why many clinics choose to use them. These machines produce a wide bandwidth of traditional light that can heat up all of the surrounding tissue. IPL lacks laser's ability to produce a selective bandwidth of light that will only affect the hair shaft making it less effective in disabling hair and putting the skin at a higher risk for side effects.
IPL generally requires more treatments (sometimes double or triple the treatments) or may only reduce the thickness and darkness of the hair, rather than eliminate it completely. Generally, true hair removal lasers (i.e. Alexandrite, Diode, and ND:Yag types) tend to achieve superior results for unwanted hair treatment.
What should the treatment be like?
Customer and therapist will wear safety glasses to protect eyes from light during the procedure. The therapist will use a small handpiece that touches your skin to deliver the light. Gels may be applied before and after treatment and sunblock is generally applied post treatment. Customer will be draped appropriately for privacy, and lay on clean, soft disposable sheeting for hygiene and comfort.
How long does the treatment take?
Every treatment, like every patient, is unique. Most areas can be treated in 5 to 15 minutes – depending on the surface area and head applicator used. Nubway diode laser High Speed Laser applicator can treat areas up to 75% faster than traditional lasers or applicators, so you can expect faster and more efficient treatments.
How many treatments will the customer needed?
Hair grows in cycles and laser can treat hairs in the “Anagen” or active growth stage. Since approximately 20% of hairs are in the appropriate Anagen stage at any one time, at least 5 effective treatments are necessary to disable most of the follicles in a given area. Most people require 8 sessions, but more may be required for the face, those with darker skin or hormonal conditions, those with certain syndromes, and for those that have waxed for many years or had IPL in the past (both affect follicle health and growth cycles).
The hair growth cycle will slow throughout the laser course as there is less blood flow and nourishment to the hair site. The growth may slow to months or even years before new hairs show up. This is why maintenance is required after the initial course. All treatment results are individual.
About us:
Beijing Nubway S&T Co,Ltd is a factory for Laser and Light based beauty aesthetic equipment. Main product included HIFUSHAPE focused untrasound hifu ,IPL SHR E-light machine,Cryolipolysis machine,diode Laser hair removal,spider vein/vascular removal,CO2 laser,nd yag laser tattoo removal, Oxygen facial intraceutical ,etc.
We have our own research and development departmentand our own factorys we can provide OEM and ODM service for the distributors all over the world. In beauty equipment industry, our factory is one of the biggest in China, it includes several production lines, Material Library, shipping department, Inspection Area.
We highly control the manufacturing process and quality assurance .
Our service
1.2 years warranty, if there any problem happens with your machine, we will repair
it free of charge (except the intended damage)
2.Free training, user manual and operation video are available, also, if it is not
enough, we can provide the online face to face education
3.OEM/ODM services, your logo, outshape, language, interface can specially be designed on your machine
